Aluminium Sheet 5052 5754 Aluminum Metal Sheet Plate Aluminum Thick
Plate
Mainly covering alloys is 1000series , 3000 series , 5000series.
Main products : hot rolled plate , hot rolled sheet , annealed
plate , quenched plates , stretched plate , hot rolled coil .
Application : Aerospace , railway transportation , automotive ,
marine , building , electronics and tooling , etc.
JIMA Aluminum Supply : 5182 5083 5A06 2024 6061 7020 7075 5086 7050
6016 6082 6101 6014 6016 3003 4017 6111 6N11 6063 8005a 6106 3103
8005A 6005A 6014 6056 6022.
Aluminum Hot Rolling Coil Specification
| Typical Alloy | Typical Temper | Specification | Typical Application |
| / | / | Thickness ( MM ) | Width ( MM ) | |
| 1070 1085 1090 | F / O | 2.2 - 15 | 1100 1150 1200 1250 1300 1350 1500 | Stock for large power battery foil product etc. |
| 3003 300312 300313 300314 | F / O | 2.2 - 15 | 1100 1150 1200 1250 1300 1350 1500 |
Stock material for foil of capacitors , pressing containers , shell
for mobile phone battery , curtain wall etc. |
| 3004 3105 | F / O | 2.2 - 15 | 1100 1150 1200 1250 1300 1350 1500 | Stock material for full aluminum cans, chemical product production
and shell of storage device and aprons, etc. |
| 5052 | F / O H112 | 2.2 - 15 | 1100 1150 1200 1250 1300 1350 1500 | Stock material for cans end , fuel tank ( pipeline ) of airplane ,
shell of mechanical ( electrical ) and curtain wall , etc. |
5754 5754 | O / H112 | 2.2 - 15 | 1100 1150 1200 1250 1300 1350 1500 | Stock Material for Auto Body Sheet , and Sound Barrier of High
Speed Railway , etc. |
5182 5182 | F / O H112 | 2.2 - 15 | 1100 1150 1200 1250 1300 1350 1500 | Stock Material for Cans end / ring - pull , Inner Auto Body Sheet ,
and Commercial tanker body Sheet , etc. |
Remark : Product with thickness under 3.5mm can reach Min . Inner
coil diameter of 505mm .
Notice : Other alloys are available upon customer demand .
Hot Rolled Aluminum Plate
| Alloy Series | Typical Alloy | Typical Temper | Thickness ( MM ) | Width ( MM ) | Length ( MM ) |
| 3xxx 5xxx | 3003 5052 5083 5A06 | F / H112 | 12 ~ 260 | 1000 ~ 3800 | 2000 ~ 38000 |
| 2xxx 6xxx 7xxx | 2024 6061 7020 7075 | F / H112 | 12 ~ 260 | 1000 ~ 3800 | 2000 ~ 38000
|
Hot Rolled Aluminum Sheet
| Alloy Series | Typical Alloy | Typical Temper | Thickness ( MM ) | Width ( MM ) | Length ( MM ) |
| 3xxx 5xxx | 3003 5052 5754 5182 5083 5086 | F / H112 | 3.0 ~ 12.0 | 2000 ~ 2600 | 2000 ~ 24000 |
| 2xxx 6xxx 7xxx | 2024 6061 7020 7075 | F / H112 | 3.0 ~ 12.0 | 2000 ~ 2600 | 2000 ~ 24000 |
Cold Rolled Aluminum Products
Main products : Cold rolled plate and sheet ; cold rolled coil
Application : Aerospace , railway transportation , automotive
marine building , electronics and construction , offshore
engineering ,
energy sources , tool and mould etc .
Cold Rolled Aluminum Sheet
| Alloy Series | Typical Alloy | Typical Temper | Thickness (MM) | Width (MM) | Length (MM) |
| 3xxx 5xxx | 3003 3004 5052 5083 5182 5754 | O H12 H22 H32 H14 H24 H34 H18 H28 H38 | 0.2 ~ 3.5 | 1200 ~ 2650 | 2000 ~ 12000 |
| 2xxx 6xxx 7xxx | 2024 6016 6061 6082 7020 7N01 7075 7050 | O T4 T6 | 0.2 ~ 3.5 | 1200 ~ 2650 | 2000 ~ 12000 |
Cold Rolled Aluminum Coil
| Alloy Series | Typical Alloy | Typical Temper | Thickness ( MM ) | Width (MM) | ID ( MM ) | OD( MM ) |
| 3xxx 5xxx | 3003 3004 5052 5083 5182 5754 | O H12 H22 H32 H14 H24 H34 H18 H28 H38 | 0.2 ~ 3.5 | 1200 ~ 2650 | 505 605 | Max . 2560 |
| 2xxx 6xxx 7xxx | 2024 6016 6061 6082 7020 7N01 7075 7050 | O T4 T6 | 0.3 ~ 3.5 | 1200 ~ 2650 | 505 605 | Max . 2560 |
Annealed Aluminum Plate
| Alloy Series | Typical Alloy | Typical Temper | Thickness (MM) | Width (MM) | Length (MM) |
| 2xxx 6xxx 7xxx | 2024 6061 7020 7075 | O | 3.0 ~ 12.0 | 1000 ~ 2600 | 2000 ~ 24000 |
| 12 ~ 260 | 1000 ~ 3800 | 2000~ 38000 |
| 3xxx 5xxx | 3003 5052 5754 5182 5083 5086 5A06 | O , H111 | 3.0 ~ 12.0 | 1000 ~ 2600 | 2000 ~ 24000 |
| O | 12 ~ 260 | 1000 ~ 3800 | 2000 ~ 38000 |
Quenched Aluminum Plate
| Alloy Series | Typical Alloy | Typical Temper | Thickness (MM) | Width (MM) | Length (MM) |
| 2xxx 6xxx 7xxx | 2024 6005A 6061 6082 7020 7N01 7075 7050 | T4 T6 | 4.0 ~ 12.0 | 1000 ~ 2600 | 2000 ~ 24000 |
| 12 ~ 260 | 1000 ~ 3800 | 2000 ~ 38000 |
Stretching Aluminum Plate
| Alloy Series | Typical Alloy | Typical Temper | Thickness ( MM ) | Width ( MM ) | Length ( MM ) |
| 2xxx 6xxx 7xxx | 2017 2024 6082 6061 7020 7N01 7075 7050 | T351 T451 T651 T7x51 | 4.0 ~ 12.0 | 1000 ~ 2600 | 2000~24000 |
| 12 ~ 260 | 1000 ~ 3800 | 2000~38000
|

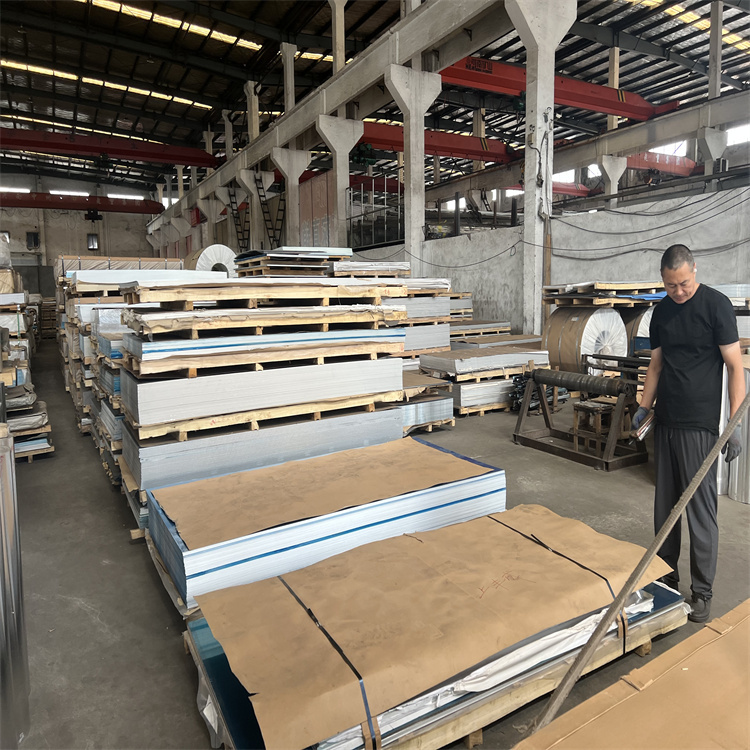

Aluminum Sheet,Plate, Coil,Bar image
